Boss ME-80 Multi Multiple Effect Guitar Pedal Board
HANDS-ON ACCESS TO A WORLD OF GREAT TONES
Mobile, battery powered, and filled with a diverse selection of flagship-quality BOSS amps and effects, the ME-80 is the ideal compact tone processor for performing guitarists. A friendly knob-based interface makes it simple to dial in great sounds in seconds, while easily selectable operation modes offer the flexibility of individual stompbox-style on/off or instant recall of complex multi-effects setups. Unique new footswitches deliver twice the control of previous designs for efficient and intuitive effects switching, patch selection, and real-time sound shaping while playing on stage. The free BOSS TONE STUDIO software unlocks even more tonal possibilities, providing a cool graphical interface for tweaking and organizing sounds on your computer, plus a web connection to BOSS TONE CENTRAL for direct access to free gig-ready patches created by top pro guitarists and much more.
AD Conversion24 bits + AF method
AF method (Adaptive Focus method)
* This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.DA Conversion24 bitsSampling Frequency44.1 kHzPatches36 (User) + 36 (Preset)PedalsPedal switch x 8
Expression pedal x 1Nominal Input LevelGUITAR INPUT: -10 dBu
AUX IN: -20 dBuInput ImpedanceGUITAR INPUT: 1 M ohm
AUX IN: 27 k ohmsNominal Output LevelGt. AMP OUTPUT L/MONO, R: -10 dBu
REC OUT/PHONES: -10 dBuOutput ImpedanceGt. AMP OUTPUT L/MONO, R: 2 k ohms
REC OUT/PHONES: 44 ohmsRecommended Load ImpedanceGt. AMP OUTPUT L/MONO, R: 10 k ohms or greater
REC OUT/PHONES: 16 ohms or greaterConnectorsGUITAR INPUT jack: 1/4-inch phone type
Gt. AMP OUTPUT L/MONO, R jack: 1/4-inch phone type
REC OUT/PHONES jack: Stereo miniature phone type
AUX IN jack: Stereo miniature phone type
USB COMPUTER port: USB type B

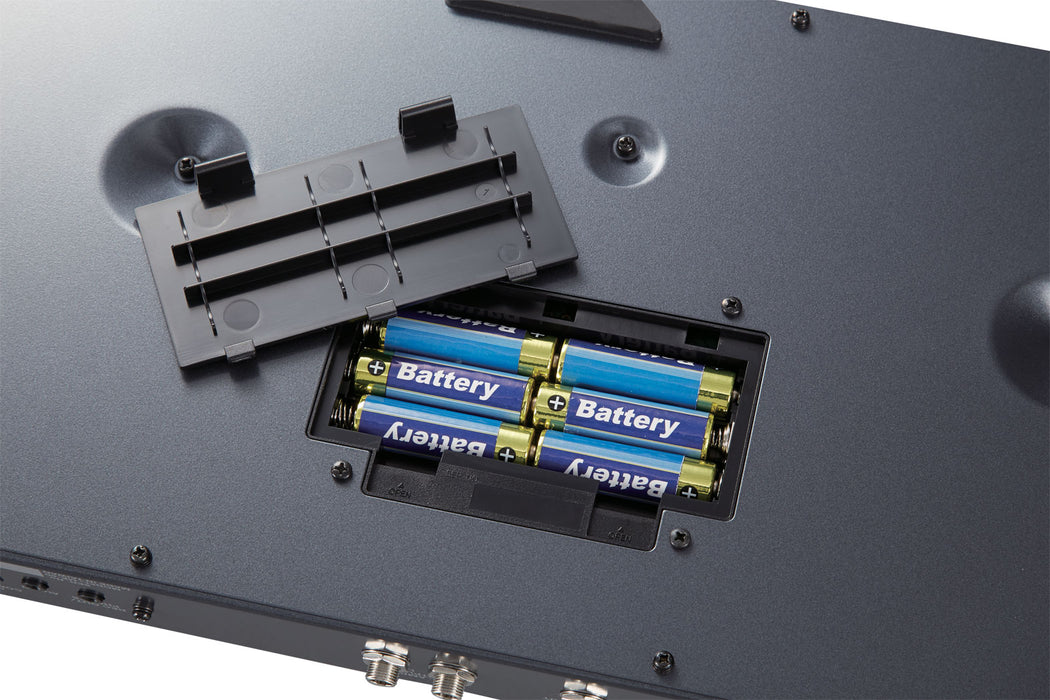

DC IN jackDisplay7 segments, 2 digits LEDPower SupplyAlkaline battery (AA, LR6) x 6
or
Carbon-zinc battery (AA, R6) x 6
or
AC adaptorCurrent Draw200 mAExpected battery life under continuous useAlkaline: Approx. 7 hours
Carbon: Approx. 2 hours
* These figures will vary depending on the actual conditions of use.AccessoriesOwner's Manual
Alkaline battery (AA, LR6) x 6
"Read Me First" LeafletOption (sold separately)AC adaptor: PSA series
