Power-All C-Y Cable-Y Splitter Cable

The Cable-Y Splitter Cable allows the user to power two pedals from one Power-All or one leg of a Daisy-Chain cable.* This allows for power chaining of additional pedals without a adding a second Daisy-Chain cable.*

The C-Y offers the following features:

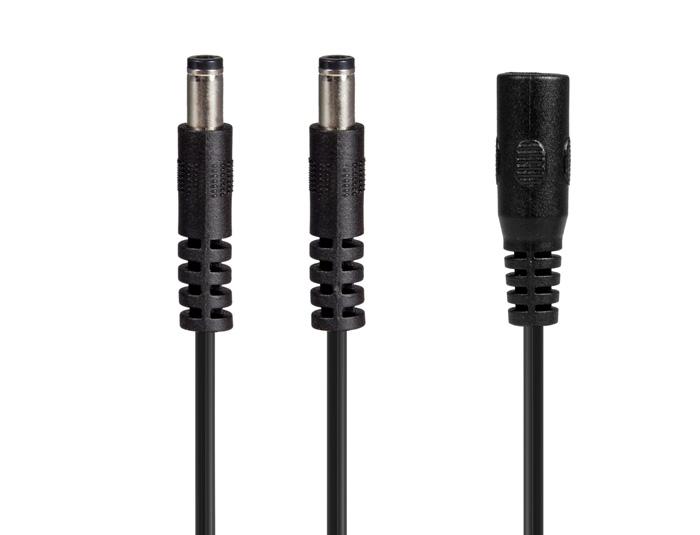

• 1 x Female Barrel jack to connect to Power-All or other power source (C-M/M & C-BLCable may be required to connect C-Y to brick-style power supplies)

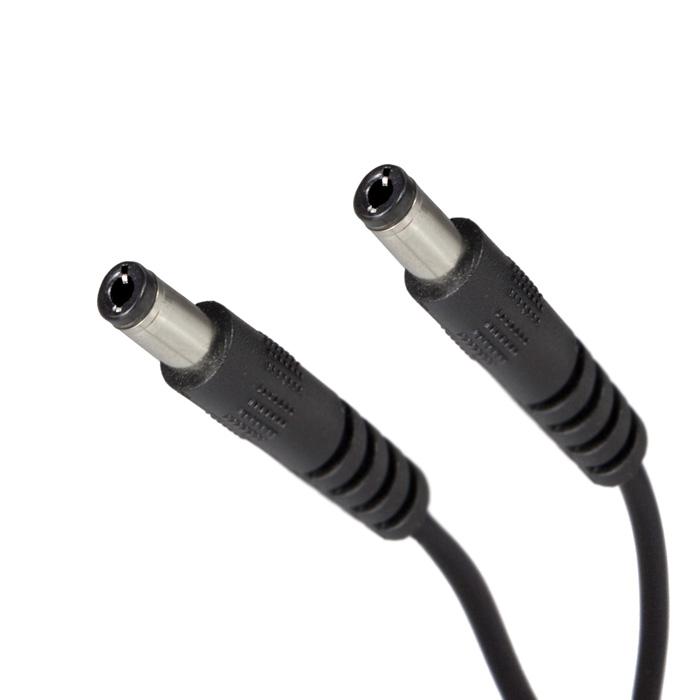

• 2 x straight Male Barrel plugs to connect to pedals or other cables.
• Spring-loaded male plugs to reduce chance of disconnection
• 26-gauge Cable with oil-resistant vinyl sheath

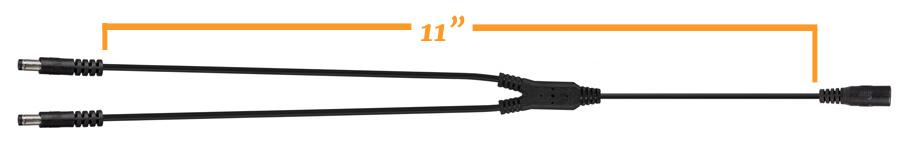

• Approximately 11” (approx. 320 mm) cable length between plugs
• NEW Lo-Pro™ Plug design offers the smallest plug dimensions possible in order to save space on your pedalboard and to make connection to your pedals quick, easy and efficient

SPECIFICATIONS:

• Female Barrel Jack (1): 5.5 mm O.D.; 2.1 mm I.D.
• Male Barrel Plugs (2): 5.5 mm O.D.; 2.1 mm I.D.; 10 mm barrel length
• Cable: 26-gauge, OFC with oil-resistant vinyl sheath
• Approximately 11” (approx. 320 mm) cable length between plugs
