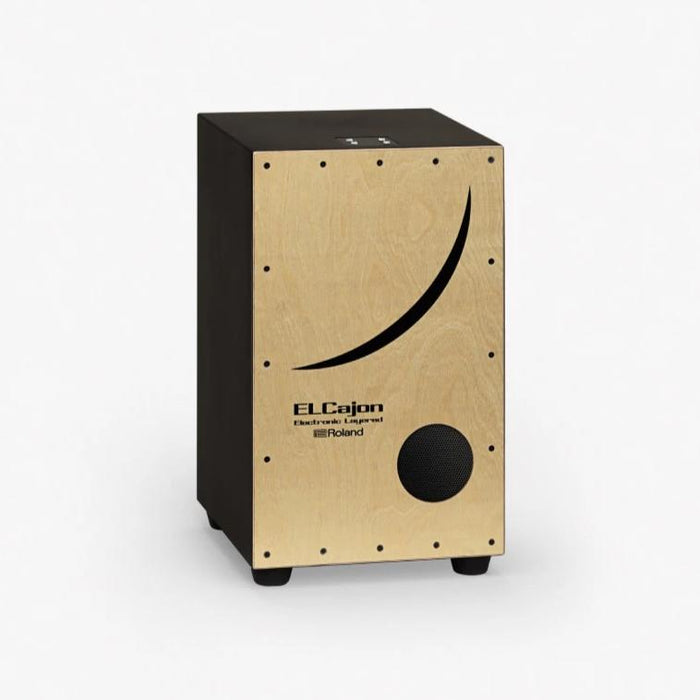

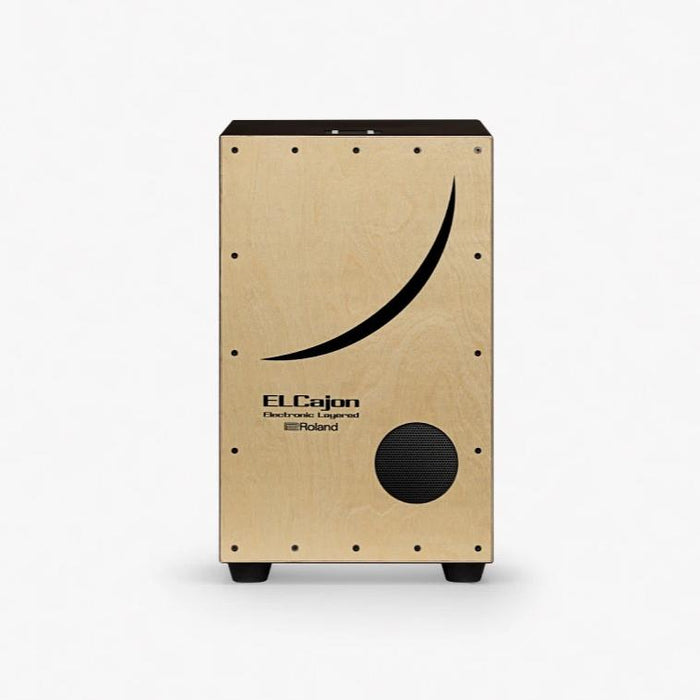

Roland EC-10 ELCajon Electronic Cajon

INNOVATIVE HYBRID CAJON WITH BUILT-IN ELECTRONIC SOUNDS

Unique and versatile, the ELCajon EC-10 allows cajon players to easily enhance their music with layered electronic sounds. To start, the EC-10 is an authentic acoustic cajon that sounds great on its own. What’s more, it has Roland’s renowned electronic percussion technology built in, letting you blend a range of complementary sounds with the cajon voice, from traditional percussion like tambourine and shaker to acoustic snare, electronic drums, sound effects, and more. Completely self-contained with battery power and onboard amplification, the ELCajon EC-10 puts the dynamic world of hybrid percussion in the hands of every cajon enthusiast.

SPECIFICATIONS

Playing Plate: Sapele Plywood

Resonance Box: MDF (Medium Density Fiberboard)

Speaker: Coaxial 16 cm (6.5 inches)

Rated Power Output: 3 W

Nominal Input Level: MIX IN: -10 dBu

Layered Sound Kit Variation: 30 (Cajon: 10, Percussion: 10, SFX: 10)

Layered Sound Contents: 2 (Head, Edge)

Controls

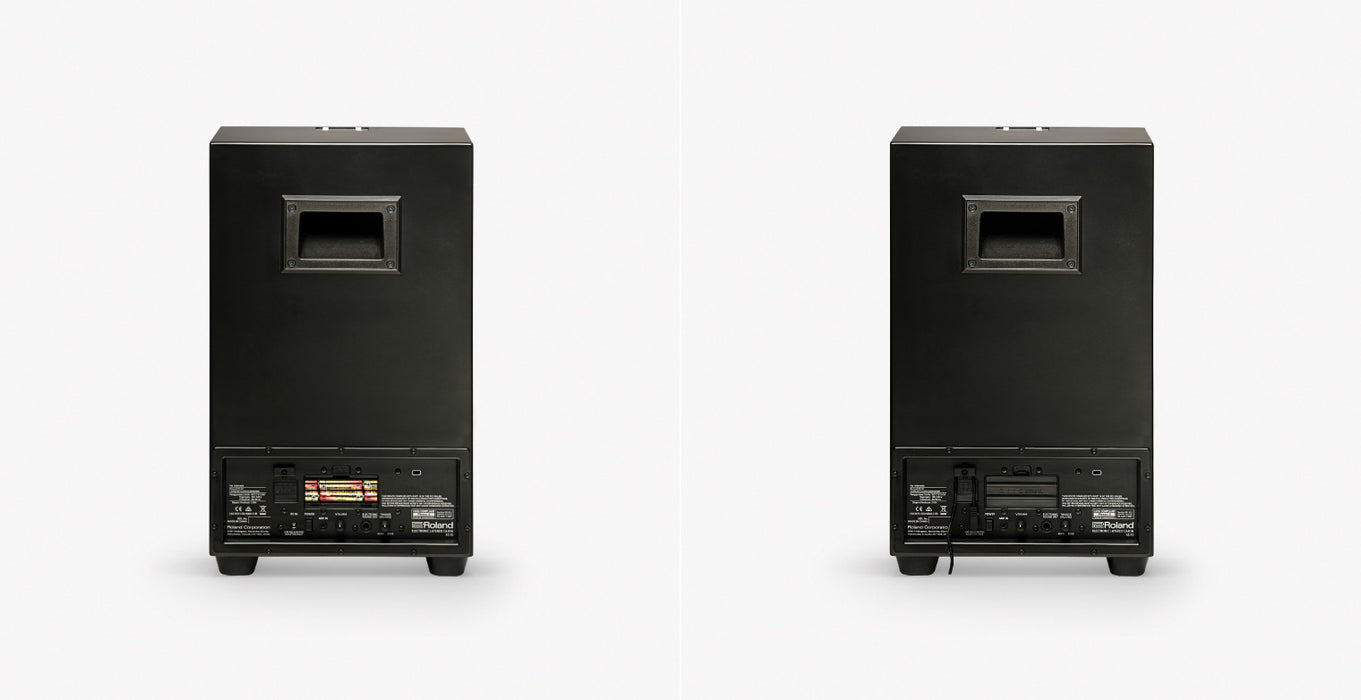

Rear Panel

POWER switch

VOLUME knob

TRIGGER BALANCE knob

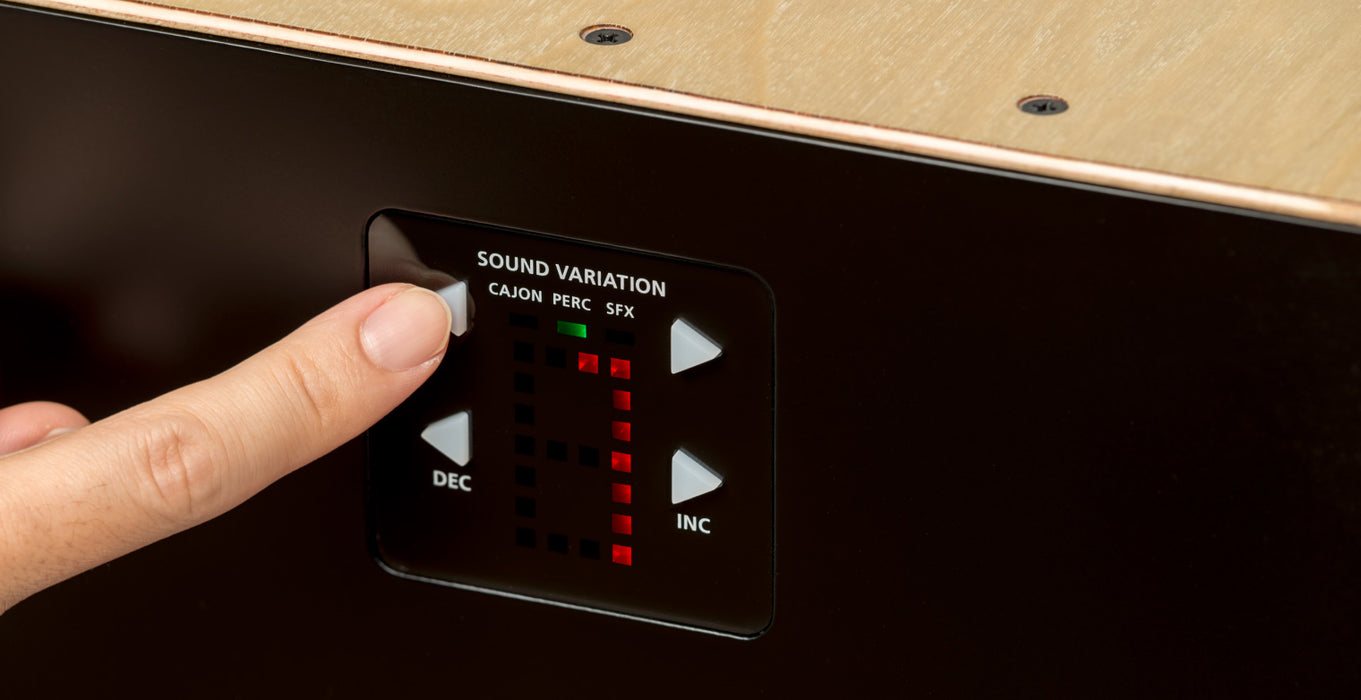

Top Panel

Sound Group Select button x2

Kit Number Select button x2

Indicators

Sound Group

Kit Number

Connectors

ELECTRONIC SOUND OUT jack: 1/4-inch phone type

MIX IN jack: Stereo miniature phone type

AC ADAPTOR jack

Power Supply

AC adaptor (DC 5.7 V)

Alkaline battery (AA, LR6) x 6

Current Draw

250 mA

Expected battery life under continuous use

Normal use: Approx. 12 hours

Maximum load use: Approx. 6 hours

* These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.

Accessories

Owner's manual

Leaflet "USING THE UNIT SAFELY"

AC adaptor

SIZE AND WEIGHT

Width 295 mm
11-5/8 inches

Depth 298 mm
11-3/4 inches

Height 495 mm

19-1/2 inches

Weight 6.0 kg

8 lbs 14 oz
